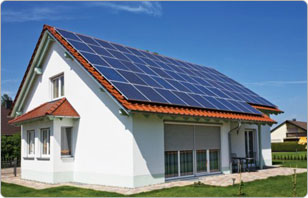

Solar Rooftops
By utilizing the free space available on the roofs of the buildings, we offer our customers an effective system, which utilizes grid-tie architecture to seamlessly integrate generated solar power into the home’s mini-grid.
The system will automatically synchronize with the grid or diesel generator voltage, frequency and phase. It can be used to provide power to loads like machinery, lighting etc. Our system is designed in a typical grid-tie architecture where the solar PV output supplements the grid connected power supply of the home/office.
We can provide our customers with a complete end to end EPC solutions with regards to their requirements for roof-top installations.
Also we provide O&M facility for our Solar Rooftop products.
AVEON through its tactical tie-ups is able to install solar systems on all types of roof spaces available such as buildings, industrial complexes, and petrol stations.
Benefits :
- No fuel Cost, good pay-back period
- A better replacement for diesel generator
- We offer cost effective solutions based on the back-up required.
- Good incentives like – 30% Subsidy from MNRE, Net Metering.
| Solar OFF Grid Power Plant | 5 KW | 10 KW | 15 KW | 20 KW |
|---|---|---|---|---|
| System Type | Solar System | |||
| Solar Inveter | 5 KVA 8 Nos | 10 KVA 16 Nos | 15 KVA 30 Nos | 20 KVA 30 Nos |
| Solar Panel | 5 KW | 10 KW | 15 KW | 20 KW |
| System Volt | 96 V | 192 V | 240V/360 V | 240V/360 V |
| Area Required for System Installation | 500 Sq. Ft. | 1000 Sq. Ft. | 1500 Sq. Ft. | 2000 Sq. Ft. |
| Power Generated by Panel (In Units) per day | 20 | 40 | 60 | 80 |
| Power Generated by Panel (In Units) for 300 day | 6000 | 12000 | 18000 | 24000 |
| Power Generated through main in one year | 3650 | 7300 | 13687.5 | 13687.5 |
| Total Energy Generated per Year | 10250 | 20500 | 33487.5 | 40087.5 |
| Cost of Energy @ Rs. 14 per unit by DG set | 143500 | 287000 | 468825 | 561225 |
| Electric Power Consumed for Charging Battery | -36500 | -65700 | -109500 | -109500 |
| Total Energy Saved per year | 107000 | 221300 | 359325 | 451725 |
| Total Money saved in Five year | 535000 | 1106500 | 1796625 | 2258625 |
| Wattage (W) | Solar Module (W) | Lead-acid Battery Type | Qty. | Output Voltage | Inverter | PV Controller | Dynamo electric Capacity (Daily) |
|---|---|---|---|---|---|---|---|
| 50 | 1 x 50 | 12V 40AH | 1 | DC 12 V | - | 12 V 6 A | 0.15-0.25KW |
| 75 | 1 x 75 | 12V 75AH | 1 | DC 12 V | - | 12 V 10 A | 0.225-0.5KW |
| 100 | 1 x 100 | 12V 70AH | 2 | AC 230 V | 12 V 150 W | 12 V 10 A | 0.3-0.5KW |
| 150 | 1 x 150 | 12V 100AH | 2 | AC 230 V | 12 V 300 W | 12 V 20 A | 0.45-0.75KW |
| 200 | 2 x 100 | 12V 120AH | 2 | AC 230 V | 12 V 300 W | 12 V 20 A | 0.6-1.0KW |
| 300 | 2 x 150 | 12V 80AH | 4 | AC 230 V | 24 V 500 W | 24 V 20 A | 0.9-1.5KW |
| 400 | 4 x 100 | 12V 120AH | 4 | AC 230 V | 24 V 500 W | 24 V 20 A | 1.2-2.0KW |
| 500 | 5 x 100 | 12V 100AH | 8 | AC 230 V | 24 V 1000 W | 48 V 20 A | 1.5-2.5KW |
| 600 | 4 x 150 | 12V 120AH | 8 | AC 230 V | 24 V 1000 W | 48 V 20 A | 1.8-3.0KW |
| 800 | 8 x 100 | 12V 150AH | 8 | AC 230 V | 48 V 1000 W | 48 V 20 A | 2.4-4.0KW |
| 1000 | 10 x 100 | 2V 300AH | 24 | AC 230 V | 48 V 1000 W | 48 V 20 A X 6 | 3.0 - 5.0KW |
| 1500 | 10 x 150 | 2V 400AH | 24 | AC 230 V | 48V 2000 W | 48 V 50 A x 6 | 4.5-7.5KW |
| 1800 | 12 x 150 | 2V 400AH | 24 | AC 230 V | 48V 2000 W | 48 V 50 A x 6 | 5.4-9.0KW |
| 2000 | 10 x 200 | 2V 500AH | 24 | AC 230 V | 48V 3 W | 48 V 50 A x 6 | 6.0-10KW |
| 2500 | 10 x 200 | 2V 600AH | 24 | AC 230 V | 48V 3 W | 48 V 100 A x 6 | 7.5-12.5Kw |
| 3000 | 12 x 250 | 2V 600AH | 24 | AC 230 V | 48V 5 W | 48 V 100 A x 6 | 9.0-15.0KW |
| 3500 | 17 x 200 | 2V 800AH | 24 | AC 230 V | 48V 5 W | 48 V 100 A x 6 | 10.0-20KW |
| 4000 | 20 x 200 | 2V 1000AH | 24 | AC 230 V | 48V 5 W | 48 V 100 A x 6 | 12.0-20KW |
| 5000 | 25 x 200 | 2V 1200AH | 24 | AC 230 V | 48V 6 W | 48 V 100 A x 6 | 15.0-25KW |
| 6000 | 30 x 200 | 2V 1500AH | 24 | AC 230 V | 48V 7 W | 48 V 100 A x 6 | 18.0-30KW |
| 8000 | 40 x 200 | 2V 2000AH | 24 | AC 230 V | 48V 10 W | 48 V 100 A x 6 | 24.0-40KW |
| 10000 | 50 x 200 | 2V 2000AH | 24 | AC 230 V | 48V 15 W | 48 V 100 A x 6 | 30.0-50KW |
